MRI Head Cage: Complete Guide to Head Coils, Function, and Patient Experience

The mri head cage is one of the most recognizable pieces of equipment in any neuropictures of mri machine, yet it is also one of the most misunderstood by patients about to undergo a brain scan. Technically called a head coil or radiofrequency (RF) head coil, this helmet-like device fits over the patient's head once they are positioned on the scanner table. Its purpose is not to restrain the patient but to dramatically improve the quality of the magnetic resonance signal received from the brain, producing sharper, more diagnostically useful images.

Patients often describe the mri head cage as looking like a birdcage, a catcher's mask, or a futuristic helmet with mirrors built in. That visual impression is accurate because the engineering principle behind many head coils is literally called a birdcage resonator. The cage shape allows multiple small antennas, known as channels, to surround the head and capture signals from every angle simultaneously. More channels generally mean faster scans and higher-resolution images of structures like the hippocampus, brainstem, and cortical gray matter.

Understanding the head cage matters for both patients and aspiring MRI technologists. For patients, knowing what the device does helps reduce claustrophobia and anxiety before the exam. For students preparing for registry exams, head coil physics, channel counts, and signal-to-noise ratio (SNR) are core topics that appear repeatedly on certification tests. Reviewing the history of MRI shows how coil technology evolved from single-channel volume coils into modern 64-channel phased arrays.

Modern head coils are designed for both transmit and receive functions, or in many cases for receive-only operation paired with the scanner's body coil for transmission. Receive-only arrays deliver the best signal quality because they sit close to the anatomy of interest. A typical 3 Tesla clinical head coil houses 20 to 64 receive channels arranged in geometric patterns optimized for parallel imaging techniques like SENSE, GRAPPA, and CAIPIRINHA, which reduce scan time substantially.

The head cage also plays an essential role in patient comfort. Built-in mirrors angle upward so the patient can see out of the bore toward the technologist's window, breaking the feeling of enclosure. Padded inserts cushion the temples and cheekbones, immobilizing the head gently to reduce motion artifact without causing discomfort. Some coils include integrated headphones for music or instructions, and channels for functional MRI button-press devices used in research.

This guide walks through everything you need to know about the mri head cage: how it works physically, why it improves image quality, side effects of mri experience during a scan, how technologists position it correctly, safety considerations, and the differences between coil designs across vendors like Siemens, GE, Philips, and Canon. Whether you are a patient preparing for a brain MRI or a student preparing for a board exam, the information below will give you a complete working understanding of this critical piece of equipment.

By the end, you will know the difference between a transmit-receive coil and a receive-only array, why channel count matters, what to do if the cage feels too tight, and how head coils are used for everything from routine brain scans to advanced functional and diffusion imaging studies.

To understand how the mri head cage produces images, you need to appreciate the physics happening inside the scanner. The main magnet aligns hydrogen protons in the body along its field direction. A radiofrequency pulse then tips these protons into the transverse plane, causing them to precess and emit a tiny RF signal as they relax back toward equilibrium. The head coil's job is to detect that whisper-quiet signal with maximum efficiency and minimum noise contamination.

Signal-to-noise ratio is the single most important performance metric for any receive coil. Because RF signals from precessing protons are extraordinarily weak, the coil must be placed close to the anatomy and tuned precisely to the Larmor frequency of hydrogen at the scanner's field strength. At 1.5 Tesla, this frequency is approximately 63.87 MHz; at 3 Tesla, it doubles to about 127.74 MHz. Mistuning by even a small amount can cut signal dramatically.

Phased array head coils take advantage of the fact that each small element sees only a portion of the head. Each element has high SNR for its local region but low sensitivity elsewhere. When the scanner combines the signals using sum-of-squares or adaptive reconstruction, the resulting composite image has higher overall SNR than any single large coil could provide. This is why a 32-channel head coil outperforms an 8-channel coil of similar geometry.

Parallel imaging techniques exploit the spatial sensitivity differences between coil elements to skip phase-encoding steps during acquisition. Methods like SENSE, GRAPPA, and CAIPIRINHA reconstruct images from undersampled data, cutting scan time by factors of 2, 4, or even 8. The trade-off is reduced SNR, expressed by the geometry factor or g-factor. Higher channel counts produce more favorable g-factor maps and enable greater acceleration.

The head cage also incorporates passive and active decoupling circuits to prevent the receive coil from interacting with the scanner's body transmit coil during RF excitation. Without proper decoupling, the high-power transmit pulse could damage the receive electronics or create severe artifacts. Diodes, PIN switches, and detuning traps ensure the receive elements only listen during the appropriate acquisition windows.

Patients sometimes ask why the cage cannot simply be larger to feel more open. The answer comes down to physics: the closer the coil sits to the head, the better the SNR. Doubling the distance between the coil and the brain cuts signal sharply because RF sensitivity falls off rapidly with distance. Engineers design head coils to fit snugly while still accommodating roughly the 99th percentile head size. Reading more about MRI medical abbreviation conventions can help decode the technical terminology used in coil specifications and protocols.

Finally, head coil design must coexist with patient safety, ergonomics, and cleanability. The cage is constructed from low-loss dielectric materials, copper conductors, ceramic capacitors, and biocompatible plastic housings that can be wiped down between patients. Cables are routed through the coil plug on the scanner table, with strain-relief features to prevent damage from repeated docking and undocking.

Safety considerations for the mri head cage are largely the same as for any MRI examination, but a few specific issues deserve attention. The first is the absolute requirement that no ferromagnetic objects enter the scanner room. The static magnetic field exerts powerful forces on iron, steel, and other ferromagnetic materials, capable of turning a small object into a dangerous projectile. The head coil itself contains no ferromagnetic components, but anything attached to the patient inside the cage could be hazardous.

Patients with implanted medical devices require careful screening before entering the bore with a head coil in place. Cardiac pacemakers, deep brain stimulators, cochlear implants, programmable shunts, and certain aneurysm clips have specific MR conditional or MR unsafe labels. The technologist must verify model numbers against manufacturer documentation and follow approved protocols, including field strength limits and specific absorption rate (SAR) ceilings.

Specific absorption rate is especially relevant for head imaging because the head cage transmits or receives RF energy that deposits heat in tissues. The FDA limits whole-head SAR to 3.2 watts per kilogram averaged over 10 minutes. Modern scanners monitor SAR continuously and automatically adjust pulse parameters to stay within limits. Patients with metallic dental work, tattoos near the head, or certain cosmetic implants may experience localized warming and should report any heat sensation immediately.

Claustrophobia is the most common patient concern related to the head cage. About 5 to 10 percent of patients experience significant anxiety during a brain MRI, and a small subset cannot complete the exam without sedation. Strategies that help include detailed pre-exam education, allowing a support person in the room when permitted, using prism mirrors to see out, playing music through MR-compatible headphones, and offering oral anxiolytics like lorazepam.

Hearing protection is mandatory for any head MRI because gradient noise can exceed 110 decibels during fast imaging sequences. Standard practice involves foam earplugs combined with circumaural headphones built into the coil or worn separately. Pediatric patients require special attention because their ear canals are smaller and the noise can be more distressing. Some facilities use silent or quiet sequence options that reduce gradient slew rates and noise output.

Patients with claustrophobia who need mri and alzheimers may benefit from learning about MRI with and without contrast protocols, since some scans require gadolinium administration that extends the time inside the cage. Open MRI systems are an alternative for severely claustrophobic patients, though image quality is generally lower because of reduced field strength and less optimal coil geometry.

Finally, infection control is a routine but important safety consideration. The head coil contacts the patient's face, hair, and sometimes saliva, so it must be cleaned between every exam with hospital-grade disinfectant wipes. Most facilities use disposable coil liners or paper drapes for additional protection. Patients with active skin infections, lice, or open wounds should inform the technologist so appropriate precautions can be taken.

Differences between manufacturers can affect both image quality and patient experience inside the mri head cage. Siemens offers the Head/Neck 20 and Head/Neck 64 coils, the latter providing 64 receive channels split between head and neck regions. GE Healthcare markets head coils with 21 to 48 channels under names like AIR Coil and Head Neck Unit. Philips offers the dStream Head coil line, and Canon provides multi-channel head coils for their Vantage systems. While the underlying physics is identical, geometry, weight, and channel layout differ.

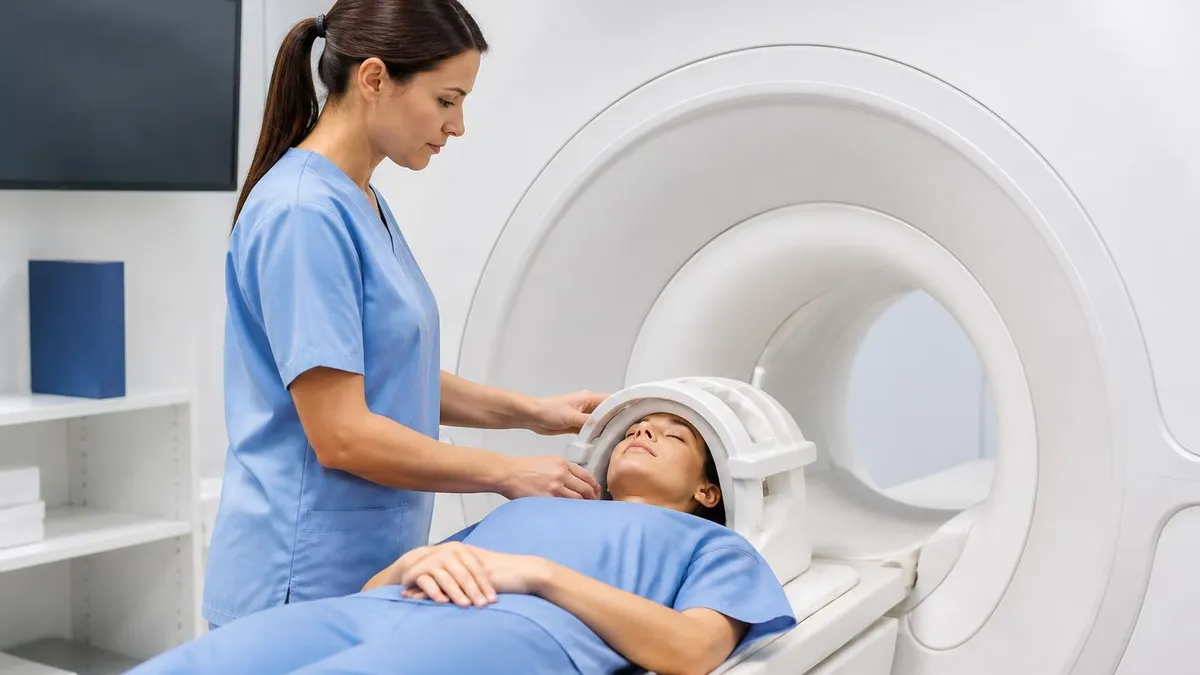

Coil positioning is one of the most important steps performed by the MRI technologist. The patient lies supine on the table with the head centered in the lower half of the coil. The top half is then lowered and locked into place. The nose should be centered, the chin tucked slightly, and the head padded firmly against motion. Misalignment by even a centimeter can degrade SNR and cause asymmetric shading on the final images.

Landmarking refers to setting the table position so that isocenter aligns with the anatomy of interest. For mri for migraines the technologist typically lands at the glabella or nasion. This places the brain at the center of the magnet bore where field homogeneity is best. Off-center landmarking can introduce shading, geometric distortion, and reduced fat saturation efficiency, especially at the periphery of the imaging volume.

For research applications, head coils may be combined with additional accessories like respiratory belts, eye-tracking cameras, button-press response devices, and physiological monitoring equipment. All of these accessories must be MR-compatible and connected through filtered penetrations in the scan room wall. The head coil's design must accommodate these add-ons without compromising patient safety or image quality.

The advent of MRI imaging centers as freestanding outpatient facilities has changed how head coils are used in everyday practice. Outpatient centers often invest in mid-range 1.5T or 3T systems with mid-channel head coils that balance cost, throughput, and image quality. Academic and tertiary hospitals typically maintain a wider range of coils including ultra-high-channel arrays for advanced applications.

Quality control of head coils is performed regularly by medical physicists and service engineers. Standard tests include SNR measurement using a phantom, uniformity assessment, geometric distortion mapping, and channel-by-channel function checks. A failing element in a 32-channel coil might be undetectable to the casual observer but can subtly degrade image quality and parallel imaging performance.

Future developments in head coil technology include even higher channel counts, AI-driven reconstruction methods that compensate for noisy or accelerated data, and motion-tracking systems that adjust scan parameters in real time. Ultra-high-field 7 Tesla systems are pushing head coil engineering to new limits, with custom transmit-receive arrays that overcome challenges like RF field inhomogeneity and increased SAR.

Practical tips for patients about to experience the mri head cage can make the difference between a smooth, successful exam and one that has to be repeated or aborted. The single most useful preparation is mental rehearsal. Visualize lying on the table, hearing the noises, and feeling the cage gently surround your head. Patients who walk in with realistic expectations report less anxiety and are more likely to complete the scan in one attempt without sedation.

Wear comfortable, metal-free clothing to your appointment if you do not want to change into a hospital gown. Soft sweatpants, T-shirts without metal snaps, and cotton socks work well. Avoid clothing with zippers, underwire bras, or metallic decorations on the chest area, which can produce artifacts even on brain images because of stray RF noise pickup.

If you wear glasses, you will need to remove them before the scan starts. If you use them for distance vision and need to see the mirrors clearly, ask the technologist about MR-safe glasses kept on hand at many facilities. Contact lenses are generally fine to leave in place, though some patients find that closing their eyes throughout the exam helps reduce the sensation of confinement.

Communicate with your technologist before and during the exam. Ask how long each sequence will last, when contrast might be given, and how to use the squeeze ball if you need to stop. Technologists genuinely want patients to be comfortable because comfortable patients hold still and produce better images. Speak up immediately about any pain, numbness, unusual warmth, or panic — these are not inconveniences, they are valuable safety signals.

Practice slow, controlled breathing throughout the scan. The cage does not restrict breathing in any meaningful way, but anxiety can create the false sensation that it does. Inhale through the nose for a count of four, hold briefly, and exhale slowly for a count of six. This vagal-nerve breathing pattern lowers heart rate and reduces the urge to move, which is exactly what the scanner needs.

For students and technologists preparing for registry exams, key head coil topics to master include birdcage versus phased array principles, transmit-receive versus receive-only operation, parallel imaging fundamentals, SAR calculations, and the geometry factor. Sample problems often involve calculating Larmor frequency at given field strengths, identifying coil-related artifacts, and choosing the appropriate coil for a specific clinical scenario such as a pediatric stroke or adult tumor staging.

Finally, remember that the head cage is a tool designed to help, not to confine. Modern coils are the product of decades of engineering refinement aimed at making MRI faster, sharper, and more comfortable. The brief discomfort of a snug fit is the price of detecting tiny strokes, characterizing tumors before they become life-threatening, and mapping the function of healthy brain tissue. With the right preparation and the right team, the mri head cage delivers extraordinary value to medicine.
