HVAC Load Calculation: The Complete Guide to Manual J, Heat Gain, and Right-Sizing Your System

An HVAC load calculation is the foundation of every properly designed heating and cooling system. Before a contractor selects an air conditioner, heat pump, or furnace, they must determine exactly how much heating and cooling capacity the building actually requires. Without this critical step, systems are routinely oversized or undersized, leading to uncomfortable indoor temperatures, excessive energy bills, short-cycling equipment, and premature component failure. Understanding how load calculations work empowers both homeowners and HVAC professionals to make smarter decisions about system selection and installation.

The most widely accepted method for residential load calculations in the United States is Manual J, developed by the Air Conditioning Contractors of America (ACCA). Manual J accounts for dozens of variables including local climate data, building orientation, insulation levels, window sizes and glazing types, occupancy, internal heat gains from appliances, and infiltration rates.

The result is a precise tonnage or BTU figure that tells the installer exactly what equipment is needed. Skipping this process and simply replacing old equipment with the same size — a practice called a straight replacement — is one of the most common and costly mistakes in the industry.

Residential load calculations differ substantially from commercial applications, which follow Manual N for light commercial buildings or more complex engineering methods for large structures. However, the underlying physics are the same: you are calculating the rate at which heat moves into or out of a building envelope under design conditions. In summer, you want to remove heat fast enough to maintain indoor comfort. In winter, you want to add heat fast enough to counteract losses through walls, roofs, floors, windows, and air leakage. The balance point between these two demands shapes every sizing decision.

HVAC technicians preparing for certification exams — including the EPA 608, NATE, and HVAC Excellence credentials — are frequently tested on load calculation principles. Even if you never perform a full Manual J yourself, understanding the inputs, outputs, and logic behind the process is essential for diagnosing comfort problems, advising customers, and passing written exams. Many technicians discover that comfort complaints they previously attributed to equipment failure were actually caused by incorrect sizing from the original installation, a problem that only a proper load calculation can reveal.

A properly sized system does far more than keep occupants comfortable. Right-sized equipment runs longer cycles at moderate capacity, which improves humidity control in summer, reduces temperature swings, and extends the life of compressors, heat exchangers, and blower motors. Oversized systems, by contrast, cool or heat spaces so quickly that they short-cycle — turning on and off frequently without completing a full dehumidification or heat distribution cycle. This leads to clammy, uncomfortable indoor air even when the thermostat setpoint is technically met, a phenomenon that confuses homeowners and frustrates technicians who focus only on temperature rather than latent heat.

Whether you are a homeowner researching a new system, a student preparing for an HVAC certification exam, or a seasoned technician brushing up on fundamentals, this guide covers everything you need to know about hvac load calculation methods, inputs, common mistakes, and practical applications. We will walk through Manual J step by step, explain the difference between sensible and latent loads, compare calculation methods, and give you the tools to evaluate whether a contractor is doing the job correctly. By the end, you will understand why load calculations matter and how to use that knowledge professionally.

The stakes are real. According to industry research, more than half of all residential HVAC systems installed in the United States are oversized by at least one ton. That represents millions of homeowners paying higher utility bills, experiencing comfort problems, and replacing equipment years before necessary — all because no one took the time to run the numbers before installation. Load calculation is not a bureaucratic formality; it is the single most important technical step in any HVAC project.

Heat gain and heat loss are the two fundamental concepts driving every HVAC load calculation. Heat gain refers to the rate at which thermal energy enters a building during the cooling season, forcing the air conditioning system to work harder to maintain comfort. Heat loss describes the opposite process — the rate at which heat escapes during the heating season, requiring the heating system to continuously replenish what is lost. Both are measured in British Thermal Units per hour (BTU/hr) and must be calculated separately because the dominant drivers differ between seasons.

Sensible heat and latent heat are equally important distinctions. Sensible heat changes the temperature of air and surfaces and is measured directly with a thermometer. Latent heat, by contrast, is the energy associated with moisture — specifically the energy required to evaporate or condense water vapor. In hot, humid climates like the southeastern United States, latent loads from outdoor humidity and occupant perspiration can account for 30 to 40 percent of the total cooling load. An oversized system that short-cycles never runs long enough to adequately condense and drain this moisture, even if it maintains the thermostat setpoint.

The building envelope is typically the largest source of load. Walls, roofs, floors, and windows all conduct heat based on their thermal resistance (R-value) or thermal conductance (U-value). A wall with an R-19 insulation assembly has a U-value of approximately 0.053 BTU/(hr·ft²·°F). Multiply that by the wall area and the design temperature difference, and you get the conduction load for that assembly.

Technicians and engineers perform this calculation for every unique surface in the building, then sum the results. Windows require additional treatment because solar radiation can transmit directly through glass, adding a significant solar heat gain component on top of basic conduction.

Infiltration — uncontrolled air leakage through gaps, cracks, and penetrations in the building envelope — adds both sensible and latent load. The standard approach uses either a measured air change rate from a blower door test or estimated values based on construction quality. Tighter modern construction with ACH rates of 0.3 to 0.5 has dramatically lower infiltration loads than older homes built before energy codes required air sealing. Mechanical ventilation, required by ASHRAE 62.2 in tight homes, must be conditioned before it enters the living space, adding its own load component that must be calculated separately.

Occupants contribute meaningful heat gains that must be included in the cooling load calculation. Each person in a residence generates approximately 230 to 250 BTU/hr of sensible heat and 200 BTU/hr of latent heat during sedentary activities. In a family of four, that is nearly 2,000 BTU/hr of internal gain — equivalent to running several incandescent light bulbs continuously. Appliances such as ranges, refrigerators, dishwashers, and dryers also contribute heat, though their impact is typically smaller in residential settings. Commercial kitchens, by contrast, can have equipment loads that dwarf all other components combined.

Duct systems in unconditioned spaces — attics, crawlspaces, and garages — introduce significant additional loads that are often overlooked. When supply ducts run through a 130°F summer attic, they absorb heat before conditioned air reaches the living space, reducing effective system capacity.

Manual J accounts for duct losses using estimated or measured duct leakage rates and the temperature differential between the duct location and the conditioned space. In homes with poorly sealed ductwork in extreme attic conditions, duct loads can add 20 to 30 percent to the effective cooling demand, making proper duct design and sealing as important as equipment sizing.

Climate data plays a critical role because design conditions vary enormously across the United States. A home in Phoenix, Arizona must be designed for 110°F outdoor temperatures and intense solar radiation, while the same floor plan in Minneapolis, Minnesota must handle −20°F winter design temperatures with minimal solar input.

ASHRAE publishes design temperature tables for thousands of weather stations, and Manual J software automatically retrieves the correct values based on zip code. Using the wrong design conditions — a surprisingly common error when contractors work across multiple climate zones — produces calculations that are systematically too large or too small for the actual location.

Common mistakes in HVAC load calculations cost homeowners and building owners billions of dollars annually in wasted energy and premature equipment replacement. Understanding the most frequent errors helps technicians avoid them and helps customers identify when a contractor is cutting corners. The single most prevalent mistake is skipping the calculation entirely and defaulting to a rule-of-thumb or simply matching the size of the old equipment. Old equipment may have been oversized from day one, or the building may have been significantly upgraded since its original installation, making the old size completely irrelevant.

Using incorrect design temperatures is a subtler but equally damaging error. Some contractors use local weather station data that does not match ASHRAE design conditions, or they confuse peak recorded temperatures with 99th-percentile design temperatures. ASHRAE design temperatures are intentionally conservative — they represent conditions exceeded only one percent of annual hours — because designing to average conditions would leave occupants uncomfortable during the hottest and coldest periods. A contractor who uses a design temperature of 95°F in Phoenix instead of the correct 110°F will systematically underestimate the load and recommend insufficient equipment.

Window load errors are particularly consequential because glazing can be the dominant heat gain component in homes with large window areas or poor-performing glass. Manual J requires the exact U-factor and SHGC for each window, along with its orientation. South-facing windows in the northern hemisphere receive intense solar radiation in winter (a useful heating source) but relatively less in summer due to high sun angles.

East and west-facing windows receive intense morning and afternoon sun in summer and must be weighted accordingly. Using generic window values instead of actual specifications can introduce errors of hundreds of thousands of BTU/hr in glazing-heavy homes.

Ignoring duct losses in unconditioned spaces is another widespread error, particularly in the South and Southwest where attic temperatures routinely exceed 130°F. Manual J includes duct loss multipliers that increase the calculated load to account for heat transferred to supply air traveling through hot attics.

When contractors enter ducts as being in conditioned space when they are actually in an attic, the calculation underestimates effective load, and the selected equipment may be unable to maintain comfort on the hottest days of the year despite appearing properly sized on paper. Blower door and duct blaster testing can provide measured leakage values that dramatically improve accuracy.

Failing to separate latent and sensible loads leads to poor equipment selection in humid climates. Standard residential air conditioners remove both sensible heat (lowering temperature) and latent heat (condensing moisture), but the ratio varies between equipment models and operating conditions. In very humid climates, selecting a unit based solely on sensible capacity can result in a system that maintains temperature but leaves the home feeling clammy and humid.

Some homes in humid climates benefit from equipment with enhanced dehumidification features, variable-speed blowers that run at lower airflows to improve moisture removal, or supplemental dehumidifiers — but none of these solutions can be identified without first knowing the latent load component.

Manual J calculations that ignore internal gains may be accurate for most homes but significantly wrong for others. A large family with many occupants, a home office with multiple computers and monitors, or a kitchen with commercial-grade appliances can add one to two tons of effective cooling demand beyond what the building envelope alone would require. This internal load is often the difference between a correctly sized system that maintains comfort and a marginally sized system that struggles on occupied summer afternoons. Technicians serving energy-conscious customers or high-occupancy buildings should always include a thorough internal gain inventory.

Software input errors — entering the wrong floor area, transposing insulation values, or selecting the wrong climate station — can silently corrupt an otherwise well-intentioned calculation. Professional contractors perform QA checks by comparing outputs against rough rules of thumb to identify obvious anomalies before finalizing results. A calculation that produces a cooling load of 3 tons for a 4,000-square-foot poorly-insulated home in Florida, for example, should trigger immediate review. Most load calculation software includes report features that show the load contribution of each component, making it easy to identify data entry errors before they affect equipment selection and customer comfort.

Translating a completed load calculation into the right equipment selection requires understanding Manual S, the ACCA companion standard that bridges the gap between calculated loads and manufacturer performance data. Equipment rated capacities on the ARI label are measured under standard conditions — 95°F outdoor air and 80°F indoor air at 50% relative humidity — that may not match your design conditions.

In Phoenix at 115°F, a unit rated at 36,000 BTU/hr at ARI conditions may only deliver 32,000 BTU/hr, a difference that can make or break the sizing decision. Always verify equipment capacity at actual design conditions using manufacturer expanded performance data tables.

Multi-stage and variable-capacity equipment introduces additional considerations that single-stage analysis misses. A variable-speed heat pump or inverter-driven mini-split system can modulate its capacity from 30% to 120% of nominal, meaning it can handle both part-load conditions efficiently and exceed nominal capacity during peak demand.

For these systems, load calculations establish the floor (minimum capacity needed) and the ceiling (maximum capacity acceptable under ACCA sizing rules), and equipment should be selected so that its modulation range comfortably covers both boundaries. This analysis cannot be performed without a completed load calculation — it is the only way to know where those boundaries actually fall.

Zoning decisions flow directly from room-by-room load calculations. A single-zone system sized to the whole-house load will satisfy the aggregate demand, but individual rooms may be overcooled or underheated depending on their exposure, orientation, and internal gains. A south-facing master bedroom with extensive glazing may have a much higher cooling load per square foot than an interior bedroom or bathroom.

Multi-zone systems, variable refrigerant flow (VRF) systems, and zoned duct systems with motorized dampers address this by delivering capacity proportional to each zone's actual load — but only if that load has been calculated correctly. Room-by-room Manual J output is the indispensable input for any serious zoning design.

Duct system design — covered by ACCA Manual D — is the logical next step after completing a load calculation. Manual D uses the room-by-room CFM requirements derived from Manual J to size supply and return ducts for proper airflow throughout the building. Undersized ducts create high static pressure that reduces airflow, strains blower motors, and produces noise. Oversized ducts increase material cost without meaningfully improving airflow. Neither error is obvious until the system is commissioned, at which point correcting duct problems is expensive and disruptive. Load calculation and duct design are a continuous workflow, not separate tasks.

Energy modeling for code compliance and green building certifications builds on the same data collected during a Manual J calculation. Programs like EnergyPlus, eQUEST, and REM/Rate use building envelope characteristics, equipment efficiencies, occupancy schedules, and climate data to simulate annual energy consumption and peak demand. These models are required for ENERGY STAR certification, HERS rating, LEED credits, and many utility rebate programs. Contractors and energy raters who have already gathered accurate Manual J inputs have most of what they need to run these models, making the load calculation step doubly valuable in projects pursuing green certifications or utility incentives.

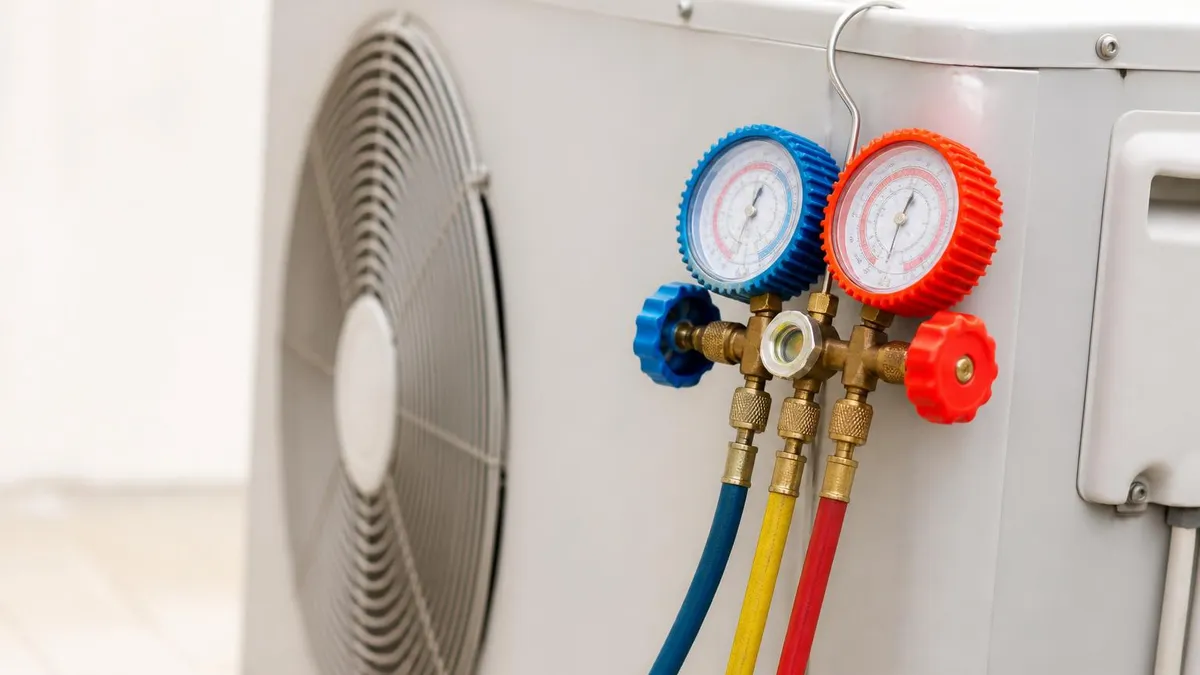

Commissioning — the process of verifying that installed systems operate as designed — is where load calculations prove their worth in practice. A well-commissioned system delivers measured airflow within 10% of design values, maintains design temperature differentials across the coil, and achieves thermostat setpoints under design load conditions. Technicians use temperature, humidity, and airflow measurements at startup to verify that the system matches calculated predictions. Significant deviations from expected performance often indicate installation defects such as refrigerant charge errors, duct leakage, or airflow restrictions that the calculation correctly predicted but the installation failed to deliver.

For homeowners evaluating contractor proposals, the presence or absence of a load calculation is one of the most reliable indicators of contractor quality. A contractor who provides a written Manual J report with clearly labeled inputs, per-room loads, and equipment selection rationale is demonstrating technical competence and professional accountability.

A contractor who quotes equipment size based on square footage alone — or matches the old unit without inspection — is taking shortcuts that will likely cost you money over the system's lifetime. Requesting a Manual J report costs you nothing and gives you the information you need to make an informed decision about one of the most significant mechanical investments in your home.

Preparing for HVAC certification exams requires a solid grasp of load calculation principles, even for technicians who plan to use software tools in practice. Certification bodies including NATE, HVAC Excellence, and RSES include load calculation questions that test conceptual understanding rather than software operation. Exam questions typically focus on which factors increase or decrease cooling or heating loads, how to interpret Manual J outputs, the difference between sensible and latent loads, and the ACCA sizing tolerances that govern equipment selection. Mastering these concepts helps you answer questions correctly even when the exact numbers differ from what you have memorized.

Practice tests are one of the most effective tools for building exam readiness in load calculation topics. Working through scenario-based questions — for example, determining how adding roof insulation affects the cooling load, or identifying which factor has the greatest impact on a heating load in a cold climate — develops the analytical thinking that written exams reward.

Many practice questions present a partially completed Manual J scenario and ask you to identify which input change would produce the largest load reduction, a question type that rewards understanding over memorization. Regular practice with these question formats builds the pattern recognition that makes exam day less stressful.

Understanding the physics behind load calculations also makes you a more effective diagnostic technician in the field. When a customer complains that their system cannot maintain temperature on the hottest days of summer, knowing load calculation principles helps you quickly evaluate whether the problem is an equipment capacity issue, a duct system issue, a building envelope issue, or a refrigerant charge issue.

Each has a different root cause and a different solution, and the ability to think systematically about heat flow through the building envelope is what separates technicians who find and fix the real problem from those who replace parts until something works.

The relationship between load calculations and energy efficiency is more direct than many technicians appreciate. A home that has undergone significant energy improvements — new windows, added attic insulation, air sealing — may have a current load that is 30 to 50 percent below the load that justified the original equipment installation.

Replacing aging equipment with the same size preserves the oversizing problem; recalculating the load and right-sizing the new equipment can dramatically reduce energy consumption, improve comfort, and qualify the homeowner for utility rebates. Technicians who offer this analysis differentiate themselves from competitors who simply swap equipment and are better positioned to build long-term customer relationships.

Emerging technologies are changing how load calculations are performed and used. Smart thermostats with machine learning capabilities are beginning to infer building thermal characteristics from measured temperature response data, producing quasi-load calculations without traditional measurements. Building information modeling (BIM) software can automatically generate Manual J inputs from digital building models, reducing data collection time from hours to minutes.

High-resolution weather data from private providers is improving on ASHRAE's static design temperatures by incorporating climate change projections and local urban heat island effects. Technicians who stay current with these developments will be better prepared for the next generation of load analysis tools.

Green building certifications increasingly require documented load calculations as part of their verification processes. The ENERGY STAR for New Homes program requires a completed Manual J verified by an approved HERS rater, and many utility rebate programs for high-efficiency equipment require Manual J documentation to qualify. LEED for Homes includes optimization credits for right-sized HVAC systems demonstrated through Manual J compliance. As these programs grow in importance, the ability to perform, review, and document load calculations becomes a competitive advantage for contractors and a valuable skill for technicians at every career stage.

The bottom line for any HVAC professional is straightforward: load calculations are not optional for competent practice. They are the technical foundation on which every sizing decision, every duct design, every equipment recommendation, and every energy performance claim must rest.

Whether you are preparing for an exam, advising a homeowner on a new system, or troubleshooting a comfort problem in an existing building, the principles covered in this guide give you the analytical framework to do the job right. Invest the time to understand Manual J thoroughly, practice with realistic scenarios, and you will distinguish yourself as a technician who delivers results that last.
