HVAC Duct Installation: Materials, Sizing, Sealing and Best Practice

HVAC Duct Installation: The Real Picture

HVAC duct installation is the part of a heating and cooling system that does the actual work of moving conditioned air from the equipment to the rooms. The furnace, air handler or rooftop unit produces the conditioned air, but the duct system distributes it. Get the ducts wrong and even the most efficient equipment delivers uneven temperatures, high energy bills and noise complaints. Get them right and a modest piece of equipment can comfortably condition a much larger building than its rated capacity would suggest. The duct system is where most field-level HVAC quality differences actually show up.

This guide walks through the major decisions in a residential or light-commercial duct installation — material choice, system layout, sizing, joining methods, insulation, sealing and pressure testing — with enough detail that homeowners considering a renovation, contractors training new technicians and HVAC students preparing for certification can find what they need. The information is generic enough to apply across most US jurisdictions, with notes where local code or regional convention typically diverges.

Many homeowners only think about ducts when something goes wrong — a room that never reaches the thermostat setting, a noisy register that whistles every time the system runs, or an obvious leak in the basement. By the time the problem is visible, fixing it usually costs more than designing the system properly in the first place. Investing in quality duct installation during new construction or major renovation is one of the highest-leverage decisions a homeowner makes about their HVAC system, even though the ducts themselves are nearly invisible once construction is complete.

Duct Material Choices

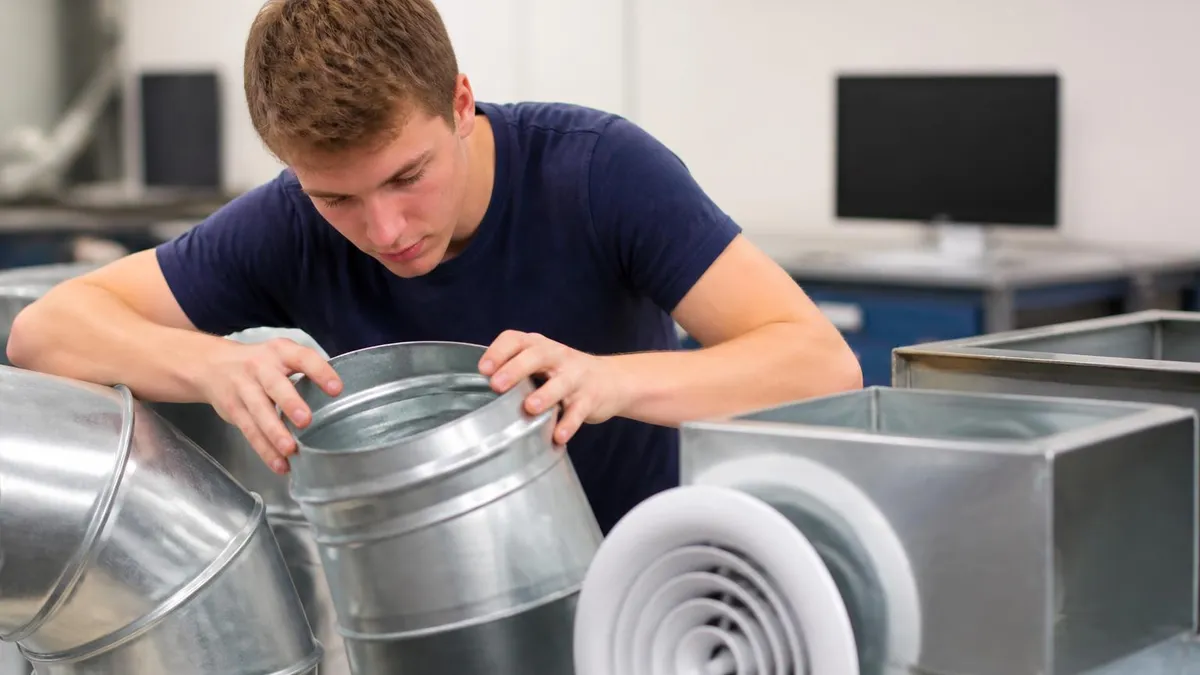

Galvanized sheet metal is the longest-lasting and most rigid duct option. It comes in pre-formed rectangular sections and round pipe, can be sized precisely with sheet metal shears, and joins reliably with screws, gaskets and sealant. Sheet metal stays straight under load, resists damage, and lasts the life of the building when properly installed. Most commercial systems and many higher-end residential installations use sheet metal for the trunk lines because the durability and airflow performance justify the higher material cost.

Fiberglass duct board (often sold as Owens Corning ductboard) is rigid panels of compressed fiberglass with a foil backing. The fiberglass insulation is built into the duct itself, eliminating the need for separate insulation wrapping and producing a quieter system because the fiberglass absorbs sound.

Duct board cuts cleanly with a knife on a bench, joins with proper aluminum tape and staples, and works well in residential supply trunks. The main downsides are reduced airflow capacity per inch of cross-section compared to sheet metal and concerns about fiberglass particulate over decades of use, although properly sealed duct board does not actually shed fibers into the airstream.

Flex duct is the cheapest and fastest material to install. The flexible spiral wire wrapped in mylar arrives on rolls that two installers can move easily and cut to length on site. The downside is that flex duct kinks easily, has rougher interior surfaces that produce more friction loss per foot than rigid alternatives, and degrades faster in attic conditions where temperatures swing widely. Best practice limits flex duct to short runs from the rigid trunk to individual registers — typically 5 to 15 feet — rather than as the primary distribution medium.

System Layout: Trunk and Branch vs Radial

Most residential HVAC systems use a trunk-and-branch design. A large main supply duct (the trunk) runs through the central part of the building, and smaller branch ducts (the takeoffs) split off from the trunk to deliver air to individual rooms. The trunk reduces in size as it moves further from the air handler because each branch removes some of the airflow, leaving less to be carried by the remaining trunk. Properly designed trunk-and-branch systems balance air pressure across the whole building, with each room receiving its calculated share of total airflow.

Radial systems run individual ducts from a central plenum directly to each room, without a trunk. The radial design works well for small homes with the air handler centrally located and the ducts able to reach every room within a reasonable run length. Radial systems are simpler to design and install but become impractical in larger buildings where the duct lengths grow too long and the central plenum gets unwieldy. Most contemporary installations are trunk-and-branch with short flex duct connections from the rigid trunk to each register.

Zoned systems add another layer of design complexity. Multi-zone HVAC uses motorised dampers that open or close in response to thermostat calls in specific zones, sending conditioned air only to the areas that need it. Zoning can dramatically improve comfort in homes with significant variation between floors or wings, but it adds equipment cost and design complexity. Done well, zoning produces better outcomes than a single oversized system serving the whole building. Done poorly, zoning produces stuck dampers, short cycling and noise complaints that mask the underlying design errors.

Joining and Sealing

Sheet metal ducts join with several traditional methods — S-cleats and drive cleats for transverse seams, snap-lock or pittsburgh seams for longitudinal joints, and screws plus mastic at takeoff connections. The sheet metal industry standard is to seal every joint, even those that look tight, because all sheet metal connections leak under pressure. Mastic — a thick paint-like sealant applied with a brush — produces the most durable seal and remains the SMACNA-preferred method for sheet metal joining. UL 181-rated foil tape is acceptable for some applications but ages faster than mastic.

Flex duct connects to rigid trunks and registers with metal collars, typically secured with two layers of sealant. The inner mylar liner pulls over the collar, gets secured with a UL 181-rated mastic or tape, and the insulation jacket pulls over the joint and gets sealed separately. The most common flex duct failure is unsealed inner liners that leak conditioned air into the insulation jacket, where it never reaches the room. Properly sealed flex duct connections are tight; unsealed ones are essentially open holes regardless of how secure the outer jacket appears.

Cloth duct tape — the iconic silver-grey cloth tape sold in every hardware store — is the wrong product for sealing ducts despite its name. The adhesive degrades rapidly under temperature cycling, and the tape commonly fails within months of installation. The product that should be used is UL 181-rated aluminum foil tape, mastic, or specialty mastic-impregnated fiber mesh. Building codes in most US jurisdictions explicitly forbid cloth duct tape for HVAC applications.

Specialised duct sealing products have emerged in recent years to address the difficulty of reaching joints inside finished walls and ceilings. Aeroseal is the best-known of these aerosolised sealants — pressurised aerosol particles enter the duct system through a temporary opening, find leaks under pressure and accumulate at the leak edges to form a seal. Aeroseal can reduce leakage by 80 to 95 percent in older retrofit systems where physical access to leaks is impractical. The treatment runs $1,500 to $3,500 for typical homes and pays back through energy savings within a few years.

Insulation and Sound Attenuation

Duct insulation prevents conditioned air from losing heat or absorbing heat as it moves through unconditioned spaces like attics, crawlspaces and unheated garages. The 2024 IECC building code requires R-8 insulation on supply ducts located in unconditioned spaces and R-6 on exterior ducts in conditioned spaces. R-value refers to the thermal resistance of the insulation; higher R-values produce better heat retention. Some jurisdictions exceed the federal minimum, particularly in cold-climate states where R-12 or R-15 ductwork is common in unheated attics.

Sound attenuation is the secondary benefit of insulation but matters in many residential and commercial applications. Bare sheet metal carries fan noise efficiently from the air handler to the rooms, producing audible whoosh through every register. Duct liner — a fiberglass insulation product applied to the inside surface of sheet metal ducts — absorbs sound and reduces noise dramatically. Liner is standard in commercial installations near air handlers and quiet residential bedrooms. The trade-off is slightly reduced airflow capacity because the liner takes up internal duct volume.

Vibration isolation is another consideration in commercial duct installation. Heavy steel duct connected directly to the air handler can transmit motor vibration into the building structure, producing low-frequency rumble that occupants find annoying even when the absolute sound level is modest. Flexible vibration-isolation connectors at the air handler discharge break the mechanical connection without restricting airflow. The same principle applies to support hangers; spring-loaded or rubber-isolated hangers reduce transmitted vibration compared to rigid metal straps.

Common Installation Mistakes

The most common residential duct installation mistake is undersized return air. Many older homes have one or two central returns trying to feed an entire HVAC system, with bedroom doors blocking return airflow when closed. The result is pressure imbalance — supply air pumping into the bedroom faster than it can return to the air handler. The fix is either a dedicated return in each bedroom or transfer grilles that allow return airflow even when the door is closed. Either approach restores the pressure balance and dramatically improves comfort.

The second common mistake is kinked flex duct. Flex duct relies on its full internal diameter for airflow, but installers sometimes route it around obstacles in tight curves that crush part of the diameter. Even a small kink can reduce airflow by 30 percent or more. Flex duct should run as straight as possible between rigid trunk takeoffs and registers, with smooth bends rather than sharp turns. Where space is constrained, sheet metal elbows are the better choice because they preserve full airflow.

The third common mistake is duct leakage in unconditioned spaces. Duct leaks in attics, crawlspaces and garages send conditioned air directly into the unconditioned space without ever reaching the rooms it was meant to serve. Leakage rates of 20 to 30 percent are common in older systems and can be tested with a duct blaster pressurization. Sealing leaks with mastic typically pays back through energy savings within one to three heating and cooling seasons, making it one of the highest-return retrofit investments in residential HVAC.

Improperly designed return air paths are also a frequent source of indoor air quality complaints. Returns that pull air from unconditioned spaces — a return register accidentally pulling from an attic or garage — introduce contaminants into the breathing air. The fix is sealing return ducts as carefully as supply ducts, ensuring all return registers terminate inside conditioned spaces, and adding combustion air provisions for any combustion appliances served by the same system. These details matter as much for safety as for comfort.

Pressure Testing and Verification

Pressure testing the duct system before closing it in is one of the most useful quality-control steps in any duct installation. A duct blaster — a small calibrated fan that pressurizes the duct system through a temporary register opening — measures total leakage at a standard test pressure (typically 25 Pascals). Industry guidance from organisations like the Building Performance Institute targets total duct leakage under 6 percent of system airflow for new construction, and under 12 percent for retrofits. Reaching those targets requires diligent sealing throughout the system rather than just at visible joints.

Most jurisdictions now require duct leakage testing for new construction as part of the building permit. The contractor performs the test, documents the results in the building's HERS rating or equivalent energy code report, and submits the documentation with the final inspection. Failed tests trigger remediation before final occupancy approval. Even where testing is not legally required, voluntary testing by quality-focused contractors produces better outcomes for homeowners and reduces callbacks for comfort complaints during the warranty period.

Manometer-based static pressure measurement is the diagnostic tool that experienced HVAC technicians use to evaluate duct system performance after installation. Static pressure readings at the air handler entrance and exit reveal whether the system is operating within design specifications. High static pressure indicates undersized ducts, dirty filters, closed dampers or restrictive coil configurations. Quality contractors document these readings on commissioning reports and use them as the baseline for any future service work on the same system.

Maintenance After Installation

Duct systems require less maintenance than the equipment they connect, but they are not maintenance-free. The National Air Duct Cleaners Association (NADCA) recommends professional duct cleaning every five to seven years for typical residential systems, and more frequently in homes with pets, allergies, smokers or recent renovation work. Cleaning removes dust, pet dander, construction debris and occasional rodent intrusion that accumulate in the duct interior. Quality NADCA-certified providers use HEPA-filtered vacuum systems and rotating brushes that clean without damaging the interior surfaces.

Beyond periodic cleaning, the most important ongoing task is changing the supply air filter on a regular schedule — every one to three months for typical residential systems. A clogged filter restricts airflow, increases blower load, accelerates equipment wear and reduces overall system efficiency. The filter is easy to change but easily forgotten. Setting calendar reminders or subscribing to a filter delivery service prevents the slow degradation that follows from neglected filter maintenance. Annual professional inspection of the entire HVAC system, including ducts, also catches small issues before they become expensive repairs.

Indoor air quality has become a much bigger consideration in residential HVAC than it was a generation ago. High-efficiency MERV 11 to 13 filters capture far more particulate than the basic MERV 4 fiberglass filters that were standard for decades. The trade-off is increased airflow restriction, which can stress an undersized blower or push a marginal system into elevated static pressure. Upgrading filtration without verifying that the duct system supports the additional resistance can produce comfort and equipment problems that masquerade as filter issues.
