Ham Radio Antennas: Where Performance Actually Comes From

Among amateur radio operators, there is a saying: "if you can only afford one upgrade, upgrade the antenna." The radio matters but the antenna matters more. A modest 50-watt transceiver into a well-built ham radio antenna outperforms a 1500-watt amplifier into a compromised antenna almost every time.

This is because antennas determine how much of your transmitted power actually reaches the air in usable form, and how much weak-signal energy you can capture from incoming transmissions. Understanding ham radio antenna basics — radiator, ground plane, resonance, SWR — pays back across every band you operate. Once you understand the basics, choosing among ham radio antenna types becomes a matter of matching the design to your space, bands, and operating goals.

Every antenna is a radiator and (usually) a ground plane. The radiator is the conductor that carries the RF current — the half-wavelength wire of a dipole antenna ham radio operators love, the quarter-wavelength element of a vertical, the driven element of a Yagi. The ground plane is the reference against which the radiator radiates — the second wire of a dipole, the radials beneath a vertical, the boom and other elements of a Yagi.

Resonance happens at a specific frequency where the antenna presents its lowest impedance to the transmitter. Standing wave ratio (SWR) measures how well-matched the antenna is at the operating frequency; SWR below 2:1 is generally acceptable; below 1.5:1 is good; very low SWR usually means well-matched.

This guide covers the major antenna families used by amateur radio operators today, how each type fits different operating goals, and the practical considerations of antenna installation including towers, feed lines, grounding, and homeowner association concerns. Whether you have a quarter-acre suburban lot, a country property where you can put up serious antenna towers for ham radio work, or an apartment where a magnetic loop is your only option, the right antenna exists for your situation. After getting your Ham Radio License, the antenna decision shapes more of your operating experience than any other choice.

The decision-making process for choosing an antenna often starts in the wrong place. Many new hams ask which antenna is 'best' without specifying their bands, space, budget, or operating goals. There is no universal best antenna. The best antenna is the one that fits your situation. A small-lot suburban operator focused on 2 meter local repeaters needs a different antenna than a large-property operator chasing DX on 80 meters. Working through your specific situation before researching antennas saves both money and frustration.

The Half-Wave Dipole: Foundation of Ham Radio Antennas

The dipole antenna ham radio operators learn first is the half-wavelength dipole. Two equal-length wires fed from the centre with coax, total length approximately 468 divided by frequency in MHz (gives length in feet). At 14.250 MHz (20 meter band), each leg is roughly 16.4 feet for a total span of 32.8 feet. The dipole is balanced, meaning current flows in opposite directions on the two legs. A balun (balanced-to-unbalanced transformer) at the feed point matches the balanced antenna to unbalanced coax cleanly, though many operators use coax direct without a balun and accept some current on the coax shield.

Dipole performance is excellent for what costs almost nothing in materials. Wire (any insulated wire works, 14 to 18 AWG copper is standard), centre insulator with coax connection, end insulators, and rope to support the ends from trees or supports. Total parts cost runs $25-50 for a 20 meter dipole. Performance is comparable to commercial antennas costing 10-20 times more for the same band. Multi-band dipoles using parallel wires ("fan dipole") cover several bands with one feed line. Dipoles install at any height that fits the property — even 25-30 feet up produces solid contacts for most operating goals.

One subtle dipole detail many builders miss: the antenna's resonant frequency depends on environment, not just length. The same dipole acts differently at 30 feet over typical soil than at 60 feet over rocky ground. Surrounding objects (trees, rooflines, power lines, other antennas) all interact with the antenna's near field and shift the resonance. Real-world dipoles often need 2-5 percent length adjustment from the calculated value to achieve lowest SWR at the target frequency. Trim from both ends equally to maintain the centre feed and balance.

Vertical Antennas and Ground Plane

Quarter-wave verticals are popular HF antennas for compact lots where a horizontal dipole will not fit. The radiator is a single quarter-wavelength element mounted vertically; the ground plane is provided by radials laid on or buried below the ground (for ground-mounted verticals) or four to eight quarter-wave wires sloping outward (for elevated verticals). Ground-mounted verticals need a substantial radial system to perform well — research from K7TJR and others shows that 16 radials produce most of the available efficiency, while 32-64 radials reach near-optimal performance. Below 8 radials, efficiency drops noticeably.

Multi-band verticals use traps (parallel-resonant LC circuits) at strategic points along the element to make the antenna work as a quarter-wave on multiple bands. Common 80-10 meter trapped verticals like the Hustler 6-BTV and Cushcraft R-7 have been popular for decades. Modern designs use trap-free approaches with multi-element designs that perform somewhat better. Verticals have higher angle of radiation than dipoles at the same height, which can favour DX (long-distance) contacts but reduce close-in (sub-1000 mile) signal strength. The trade-off is the price of compact vertical installation.

Elevated verticals on rooftops, towers, or above-ground supports use a different ground plane approach. Four to eight quarter-wave radials sloping downward at 30-45 degrees provide effective ground without buried radials. The radials act as an artificial ground plane decoupling the radiator from the rest of the structure. Elevated verticals with proper radial systems often outperform ground-mounted verticals because they avoid the ground losses that absorb power in the soil. The trade-off is less protection against weather and more visibility for HOA-restricted properties.

2 Meter Ham Radio Antenna Choices

The 2 meter band (144-148 MHz) is the busiest VHF band for amateur radio. Most local repeaters operate on 2 meters; many ham radio activities (nets, public service events, emergency communications) center on 2 meters. A solid 2 meter ham radio antenna pays back daily for active hams. The Diamond X-50A and X-200A are popular dual-band (2m/70cm) verticals for fixed-station base operation. Both provide solid gain and durable construction at moderate cost ($80-180). The Comet GP-3 and GP-9 are similar quality alternatives.

For operators who want to build rather than buy, the J-pole is the classic 2 meter antenna. Copper pipe construction (3/4 inch type L copper, two pieces connected with a tee fitting and elbow) produces a robust outdoor antenna for $30-50 in materials. The Slim Jim variant uses 300-ohm twin lead for an even simpler portable design. Antenna analyzers help tune the J-pole's matching stub for lowest SWR at your favourite frequency. Built J-poles often outperform commercial antennas costing several times more.

Mobile installations on vehicles deserve specific attention. The classic 5/8 wave 2 meter mobile antenna with NMO mount provides excellent performance using the vehicle body as ground plane. Magnetic mount versions install without permanent vehicle modification but degrade slightly in high winds. Trunk lip mounts, mirror mounts, and luggage rack mounts all work for permanent installations on vehicles where holes through the roof are not desired. The Comet SBB-5 and Diamond NR-770HB are popular 5/8 wave choices for mobile work.

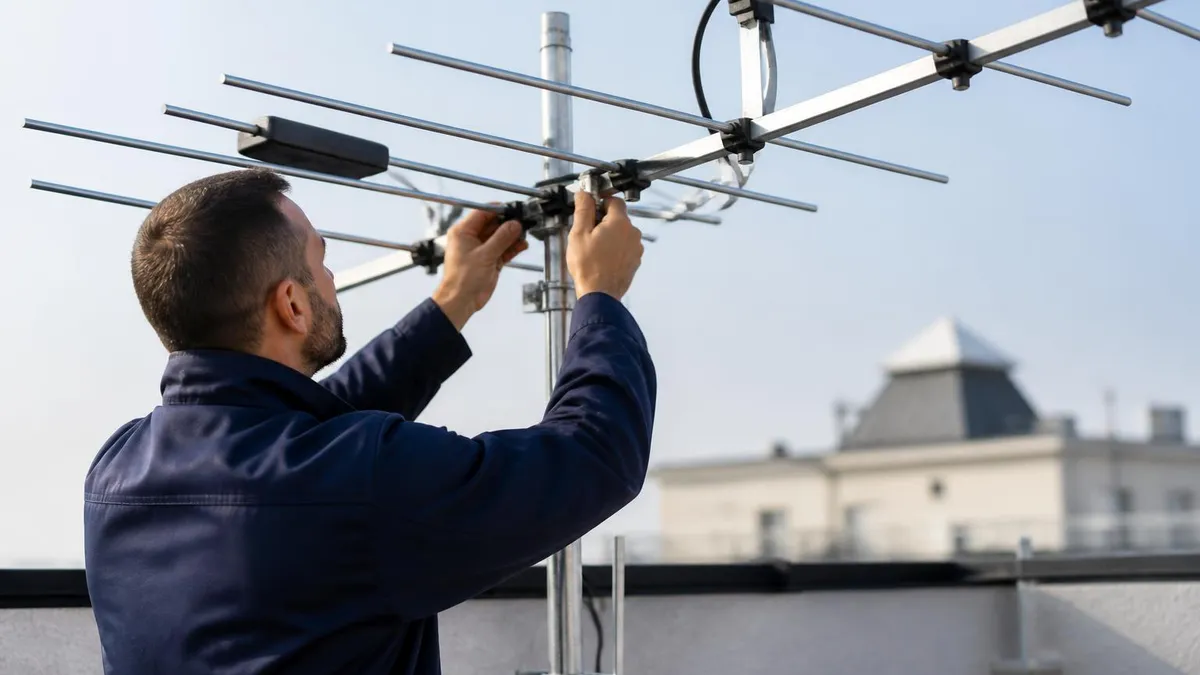

Yagi antennas for 2 meter and 70 cm bands open longer-distance VHF and UHF work that omnidirectional verticals cannot match. The Arrow II series, Diamond A-144S5R, and similar Yagi designs provide 6-15 dB gain over reference dipoles. Pointing a Yagi requires either manual rotation (handheld for satellite work) or a rotator (fixed station). Yagi antennas excel at weak-signal modes (CW, SSB) on VHF/UHF where the gain matters substantially. Most repeater-focused 2 meter operators use verticals; weak-signal enthusiasts use Yagis.

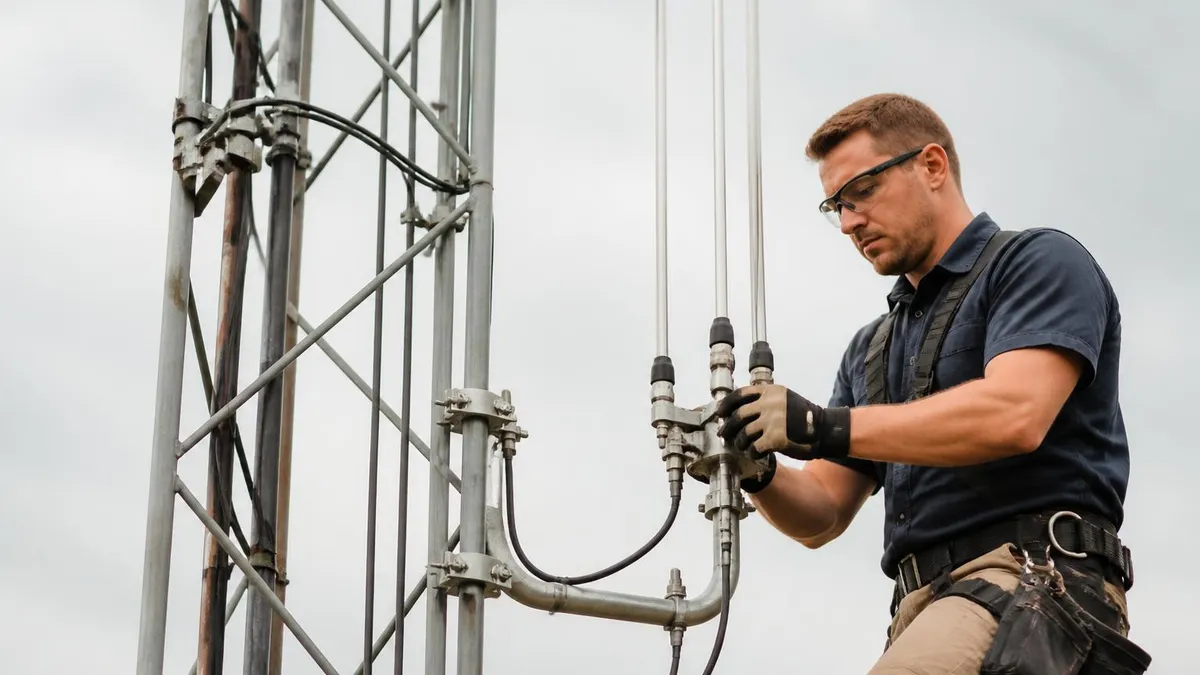

Antenna Towers for Ham Radio Operations

Serious HF operators eventually consider antenna towers for ham radio work. Towers raise antennas above local obstructions, providing better takeoff angle for DX work and reduced ground losses. Tower types: free-standing (no guy wires required), guyed (smaller cross-section but needs guy wire ground points), and crank-up (telescoping for height adjustment). Common amateur tower heights run 40-70 feet for typical suburban installations. Self-supporting towers like the US Tower MA-40 and Universal RT-832 are common base-station choices. Guyed towers like Rohn 25G and Trylon TX-455 require more property but cost less per foot of height.

A rotator (motor that turns the antenna) is essential for directional antennas like Yagis. The Yaesu G-1000DXC, Hy-Gain Tailtwister, and Hy-Gain HAM-IV are popular choices for typical Yagi installations. Heavier antennas require heavier-duty rotators; multiple stacked Yagis sometimes need two rotators or specialised stacked-antenna rotator setups. The control cable from rotator to controller in the shack should match the rotator manufacturer's specifications — voltage drop on long cables can prevent proper rotation under wind load.

Local zoning and permitting matter substantially for tower installations. Most jurisdictions require a building permit for towers above 10-15 feet. Some cities have specific antenna ordinances limiting height or requiring setbacks from property lines. Before purchasing tower hardware, check with the local building department and review any HOA covenants. The PRB-1 ruling and state antenna laws in many states provide some protection but do not override all local rules. Engaging the building department early in planning is more productive than asking for forgiveness later.

Climbing safety is non-negotiable for tower work. Use a proper tower climbing harness, observe two-anchor practices (always have at least one positive attachment to the tower), check welds and bolts before climbing, and never climb in wet or icy conditions. Many experienced hams hire professional tower climbers for installation and maintenance, particularly for taller towers above 50 feet. The cost of professional tower work is small compared to the cost of injury from a fall. Ground-based tilt-up methods avoid most climbing entirely for towers designed with that capability.

Satellite Antennas: Working Amateur Radio Satellites

An antenna for satellite ham radio operation works the satellites that orbit Earth carrying amateur radio transponders and digipeaters. The Arrow II 146/437-10WBP is the most popular handheld satellite antenna — a dual-band crossed Yagi small enough to handhold, providing ~6 dBi on VHF (up) and ~10 dBi on UHF (down) for typical FM satellites like AO-91, AO-92 (when active), SO-50, and IO-117. Operators point the antenna at the satellite and adjust as the satellite moves across the sky during a 10-15 minute pass. Many SO-50 and other FM satellite contacts are made entirely with handheld setups.

For more serious satellite work or digital satellites, fixed installations with rotor-mounted cross-Yagis perform substantially better than handheld setups. The M2 LEO-Pack (combination of 2M and 70cm cross-Yagis on a single boom) is popular for ground-station satellite setups. Az/el (azimuth and elevation) rotors track satellites automatically with software like SatPC32 or Gpredict controlling the rotator from satellite tracking data. Total cost runs $1500-3000 for a complete fixed satellite station, compared to $250-400 for a competent handheld setup with Arrow II.

The International Space Station has periodic ham radio activity. ARISS (Amateur Radio on the International Space Station) coordinates contacts between schools and ISS crew, and routine packet/voice operations happen on 2 meter when crew are available. Working ISS uses similar antennas to LEO satellites — Arrow II handheld setups work well for ISS passes. Schedules and frequencies are published on amsat.org and other amateur radio satellite sites. The ISS sometimes operates in cross-band repeater mode allowing easy Earth-to-Earth contacts via the station.

Feed Lines: Coax and Ladder Line Choices

RG-58 is the cheap thin coax common in commercial mobile installations and short patch cables. Loss is acceptable for short runs (under 50 feet) on HF and VHF; UHF loss is high. RG-8X is a step up — slightly larger diameter, lower loss, suitable for runs up to 100 feet on most bands.

LMR-400 is the workhorse for longer runs and higher frequencies — substantially lower loss than RG-8X, similar diameter. Hardline (LMR-600, 7/8 inch heliax) is for very long runs or VHF/UHF where loss matters most. Ladder line (450 ohm or 600 ohm window line) has very low loss but requires antenna tuner to match to typical 50 ohm radios.

Connectors matter more than most operators expect. PL-259 connectors are common on HF and VHF but introduce loss at UHF compared to N-type connectors. For UHF and microwave work, N-type connectors substantially outperform PL-259 in both loss and weatherproofing. Mixing connector types requires adapters which add their own loss. Standardising on N-type connectors throughout a station produces measurably better UHF performance, particularly on long feed line runs. The cost difference is modest; the performance difference is real.

Grounding and Lightning Protection

Proper grounding is essential for safety and performance. Drive an 8-foot copper-clad ground rod near where the feed line enters the building. Bond all equipment grounds (radio, tuner, amplifier, computer) to the same ground point with heavy bare copper braid or wire. Install a lightning arrestor on each coax line at the entry point, with the arrestor's ground bonded to the same ground point. A polyphaser or similar arrestor diverts lightning strikes to ground rather than allowing them to enter the shack. Disconnect feed lines during thunderstorms; even with arrestors, direct strikes can destroy radios.

RF grounding and DC/safety grounding are different concerns that sometimes confuse new operators. Safety grounding protects against electrical shock and lightning damage and uses thick conductor (8 AWG or heavier) bonded to the ground rod. RF grounding addresses common-mode currents on coax shields and uses chokes (ferrite chokes on coax, antenna baluns) rather than ground rod connection. Both matter, but they solve different problems. The ARRL Antenna Book chapters on grounding cover the distinctions in detail and are worth reading once during early antenna installation.
