Electrocardiogram (EKG) Guide 2026: Interpretation and Certification

What Is an Electrocardiogram (EKG)?

An electrocardiogram (EKG or ECG — both abbreviations refer to the same test, from the English and German spellings respectively) is a non-invasive diagnostic test that records the electrical activity of the heart over a period of time. Electrodes placed on the skin detect the electrical impulses generated by the heart with each heartbeat, and these signals are displayed as waveforms on paper or a monitor screen.

The EKG is one of the most widely used diagnostic tools in medicine. It is used in virtually every clinical setting — emergency departments, cardiac care units, physician offices, and pre-operative assessments — because it provides immediate information about the heart's rhythm, rate, and the presence of cardiac abnormalities. A standard 12-lead EKG takes approximately 10 minutes to perform and can detect conditions including arrhythmias, myocardial infarction (heart attack), heart block, enlarged heart chambers, electrolyte abnormalities, and medication effects.

How an EKG Works

The heart generates electrical impulses that travel through its conduction system — the sinoatrial (SA) node, atrioventricular (AV) node, bundle of His, bundle branches, and Purkinje fibers — causing the heart muscle to contract in a coordinated sequence. Skin electrodes detect the direction and magnitude of these electrical impulses as they pass through the body. A 12-lead EKG uses 10 electrodes placed in specific locations (four limb electrodes and six chest electrodes) to capture 12 different electrical 'views' of the heart. Each lead represents the heart's electrical activity from a different angle, providing comprehensive information about all regions of the cardiac muscle.

EKG Interpretation Basics

Understanding the basic waveforms of the EKG is fundamental for EKG technicians and essential content for the EKG certification exam.

The Normal EKG Waveform

A normal cardiac cycle produces the following waveform components: P Wave — represents atrial depolarization (the electrical activation of the atria that causes them to contract). A normal P wave is rounded, upright in most leads, and precedes every QRS complex. A missing or abnormal P wave indicates atrial rhythm abnormalities. PR Interval — the time from the beginning of the P wave to the beginning of the QRS complex, representing conduction delay through the AV node. Normal PR interval: 0.12 to 0.20 seconds. A prolonged PR interval indicates AV block. QRS Complex — represents ventricular depolarization (the electrical activation of the ventricles that causes them to contract). Normal QRS duration: 0.06 to 0.10 seconds. A wide QRS indicates bundle branch block or ventricular rhythm. ST Segment — represents the period between ventricular depolarization and repolarization. ST elevation indicates acute myocardial injury (heart attack); ST depression indicates ischemia. T Wave — represents ventricular repolarization (the electrical recovery of the ventricles). T waves should be upright in most leads. Peaked T waves may indicate hyperkalemia. QT Interval — the time from the beginning of the QRS to the end of the T wave, representing the total ventricular electrical activity cycle. A prolonged QT interval carries risk of life-threatening arrhythmias.

Common EKG Rhythms to Know

EKG certification exams require recognition of common cardiac rhythms: Normal Sinus Rhythm (NSR) — regular rate 60–100 bpm, upright P before every QRS, PR interval 0.12–0.20 sec; Sinus Bradycardia — NSR with rate below 60 bpm; Sinus Tachycardia — NSR with rate above 100 bpm; Atrial Fibrillation (AFib) — irregularly irregular rhythm, absent organized P waves, variable ventricular rate; Atrial Flutter — regular sawtooth flutter waves, typically 2:1, 3:1, or 4:1 AV conduction; Premature Ventricular Contractions (PVCs) — wide, bizarre QRS complexes occurring early, with compensatory pause; Ventricular Tachycardia (VT) — three or more consecutive PVCs at rate above 100 bpm; Ventricular Fibrillation (VF) — chaotic waveforms with no organized electrical activity; First-degree AV Block — prolonged PR interval; Second-degree AV Block (Mobitz I/Wenckebach) — progressively prolonged PR until a QRS is dropped; Second-degree AV Block (Mobitz II) — fixed PR with intermittently dropped QRS; Third-degree (complete) AV Block — complete dissociation of P waves and QRS complexes.

EKG Technician Role

EKG technicians (also called electrocardiograph technicians or cardiac monitor technicians) are allied health professionals trained to perform electrocardiograms, Holter monitor application, and cardiac stress testing. They work in hospitals, cardiologist offices, outpatient clinics, and cardiac catheterization labs.

What EKG Technicians Do

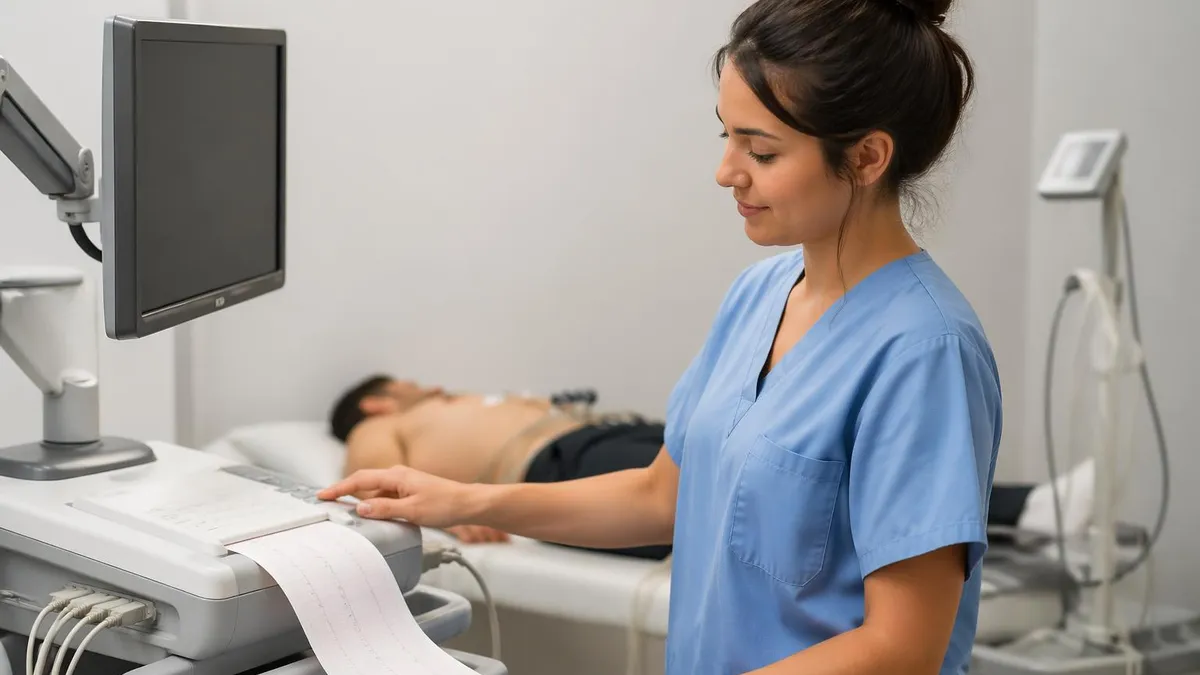

The primary duties of an EKG technician include: performing 12-lead EKGs — preparing the patient, placing electrodes in correct anatomical positions, operating the EKG machine, and transmitting the tracing to the physician for interpretation; applying and removing Holter monitors — 24- to 48-hour ambulatory cardiac monitors that record the heart's rhythm continuously while the patient goes about daily activities; assisting with stress testing — monitoring the patient's EKG tracing, vital signs, and symptoms during a treadmill or pharmacologic stress test under physician supervision; cardiac monitoring — in some settings, EKG technicians serve as cardiac rhythm monitors (telemetry technicians), continuously watching rhythm strips for changes that require clinical attention; and patient preparation and communication — explaining the procedure, addressing patient concerns, and ensuring patient comfort.

Electrode Placement

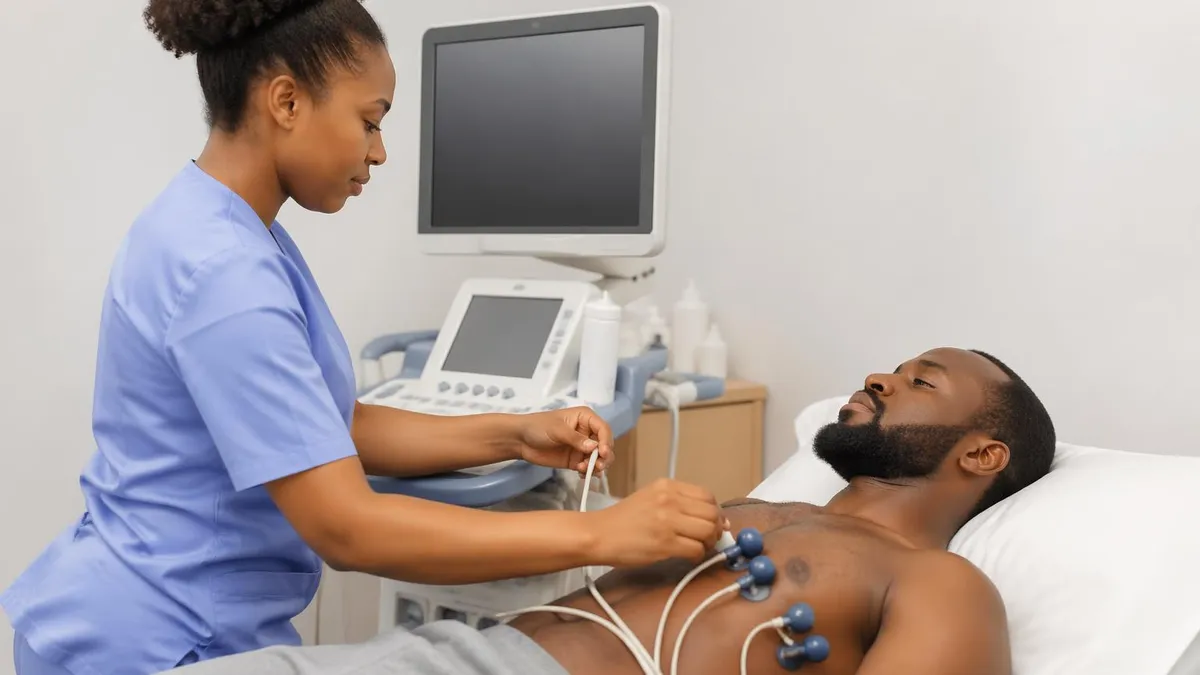

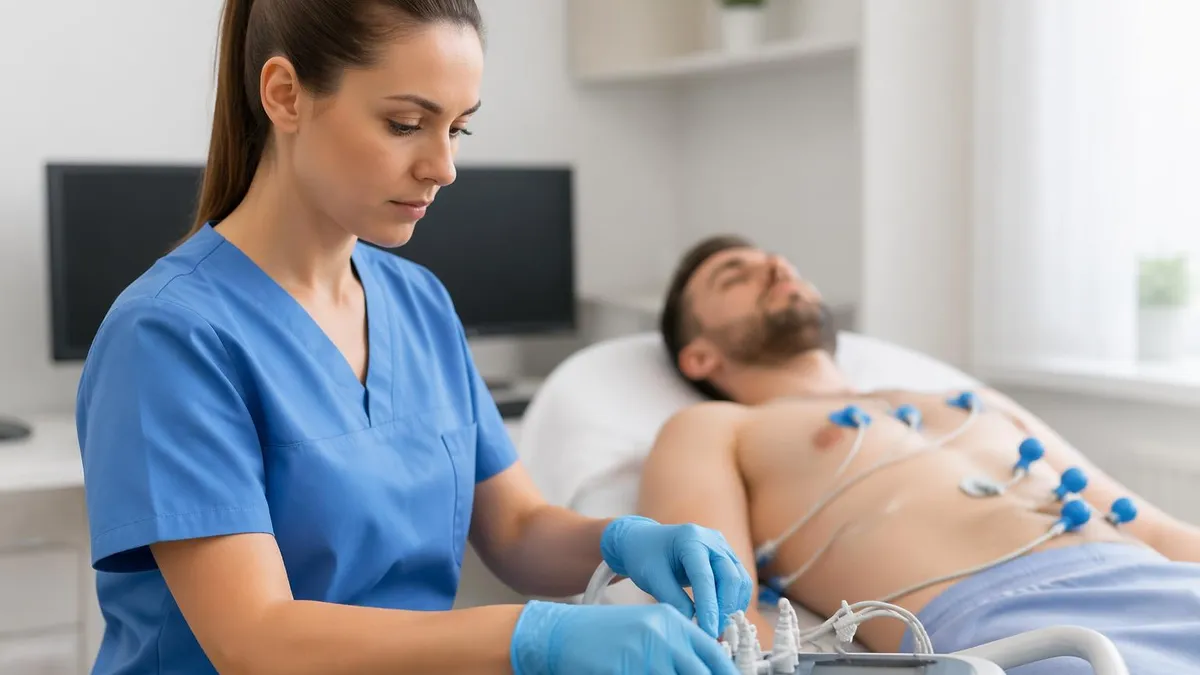

Correct electrode placement is critical for diagnostic accuracy and is heavily tested on EKG certification exams. Limb leads (four electrodes): Right arm (RA), Left arm (LA), Right leg (RL — ground), Left leg (LL). Precordial (chest) leads (six electrodes): V1 — 4th intercostal space, right sternal border; V2 — 4th intercostal space, left sternal border; V3 — between V2 and V4; V4 — 5th intercostal space, midclavicular line; V5 — anterior axillary line, same level as V4; V6 — midaxillary line, same level as V4 and V5. Misplacement of even one electrode can produce artifactual changes on the EKG tracing that may mimic pathology — electrode placement accuracy is a patient safety issue, not just a technical detail.

EKG Technician Certification

EKG technician certification validates foundational knowledge of cardiac anatomy and physiology, EKG interpretation, electrode placement, and cardiac rhythm recognition. Certification is not universally required by law but is expected or required by most hospital employers and cardiac specialty practices.

Major EKG Certifying Organizations

NHA (National Healthcareer Association) — the NHA's Certified EKG Technician (CET) credential is the most widely recognized EKG technician certification in the United States. Many vocational and community college EKG programs partner with NHA and prepare candidates specifically for the CET exam. NCCT (National Center for Competency Testing) — the NCCT EKG Technician certification is another widely accepted credential, particularly in outpatient and physician office settings. AMCA (American Medical Certification Association) — the AMCA offers the ECG Technician Certification (ETC). ASCP (American Society for Clinical Pathology) does not offer a standalone EKG certification but its cardiovascular technologist examinations cover advanced cardiac monitoring.

Eligibility Requirements

Most EKG certifying bodies require: a high school diploma or GED; and completion of a recognized EKG training program (or in some cases, documented work experience performing EKGs). Training programs are offered at community colleges, vocational schools, and online — typically 4 to 12 weeks in duration with both classroom and clinical components. As with phlebotomy, programs that lack hands-on clinical training (actual EKG performance on patients) may not satisfy certification body requirements.

EKG Certification Exam Preparation

EKG certification exams test anatomy and physiology of the heart and conduction system, electrode placement and lead systems, normal EKG waveform components and measurements, common cardiac rhythm recognition, stress testing and Holter monitor basics, and safety and infection control procedures. Effective preparation combines structured content review with rhythm strip practice.

Study Strategy

Cardiac anatomy first — you cannot understand EKG waveforms without understanding the conduction system. Study the SA node, AV node, bundle of His, right and left bundle branches, and Purkinje fiber network, and how each structure corresponds to a portion of the EKG waveform. Rhythm recognition practice — use rhythm strip practice sets to develop pattern recognition for the most common rhythms. Create flashcards for each rhythm with: rate, regularity, P wave presence and morphology, PR interval, QRS width, and defining features. Electrode placement memorization — use anatomical landmarks to memorize V1–V6 placement and all four limb lead positions. Practice positioning electrodes on a diagram until you can do it from memory. Normal values — memorize normal ranges: PR interval (0.12–0.20 sec), QRS duration (0.06–0.10 sec), QTc (up to 0.44 sec for men, 0.46 sec for women), and normal rate (60–100 bpm).
